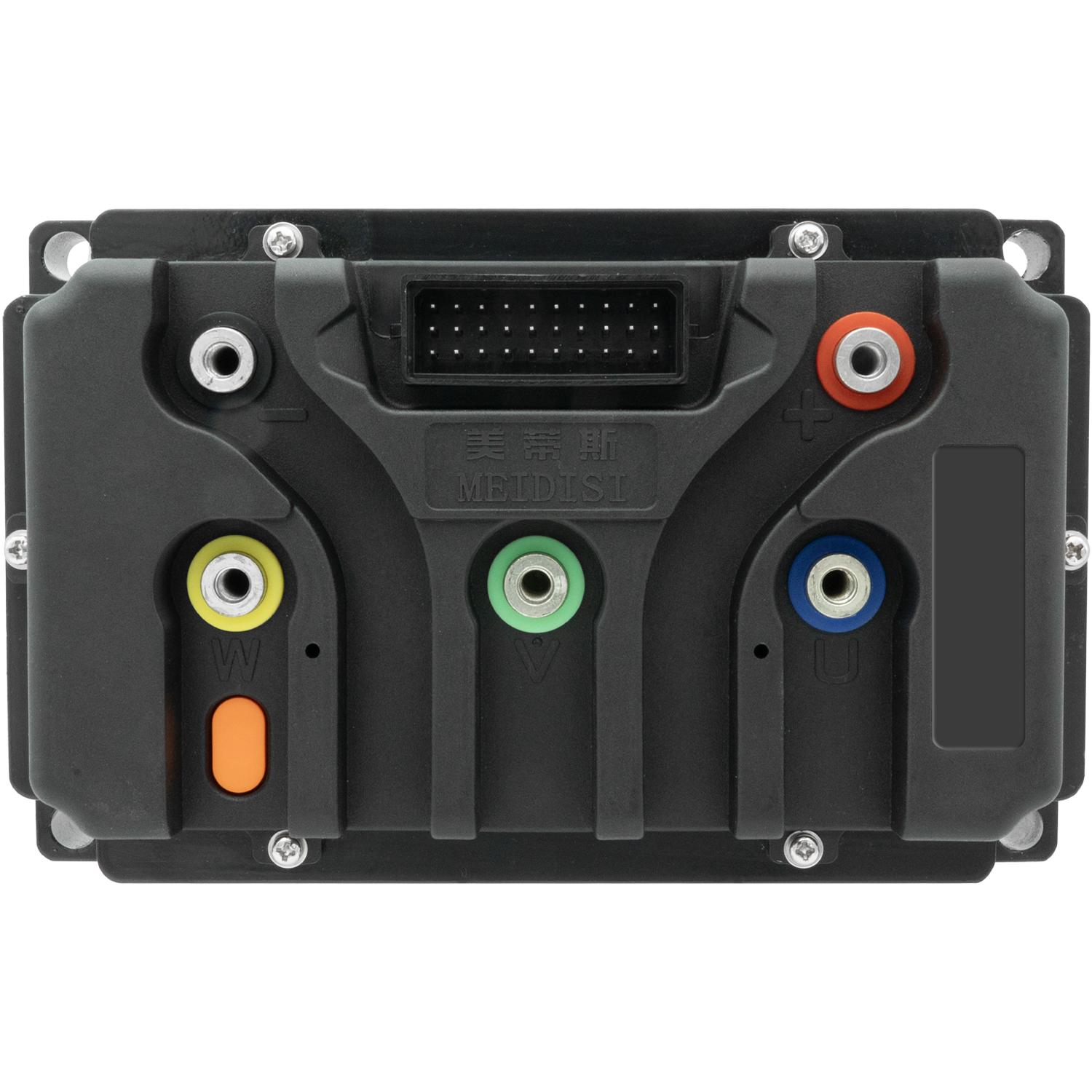

MCS / STREET PERFORMANCE
M760
PRECISE CONTROL.
YOUR OWN TUNE.
24 MOSFETs. Up to 350 A bus current and 760 A phase current. A 189 × 118 × 55 mm housing with an air-cooled base.
Full charge ≤95 V
189 × 118 × 55 mm
01 / SPECIFICATIONS
Clear electrical limits.
- Peak bus current
- 350 A
- Peak phase current
- 760 A
- Recommended motor
- 3–6 kW
- Theoretical power
- ~25.2 kW
- MOSFET
- 24 MOSFETs
- Full-charge limit
- ≤95 V
- Cooling base
- Air-cooled base
- Body dimensions
- 189 × 118 × 55 mm
Maximum current values are peak limits, not continuous-current ratings. Check battery chemistry, full-charge voltage, BMS, motor and installation clearance before choosing a configuration.
02 / AIR COOLING
A base built for airflow.
The underside uses a pin-fin air-cooled structure. Keep the cooling surface and airflow path unobstructed. It is not the M1000 water-cooled base; no water-pump connection or temperature-drop claim is shown here.
The matched adapter harness is included, as with M1000.
Vehicle fitment, nominal voltage range, functions and stock are still being confirmed.
Same family: M560 / M1000 — ask about availability & lead time.
04 / INSTALLATION DIMENSIONS
189 × 118 × 55 mm
All four views use one physical scale. Overall body dimensions are confirmed; mounting-hole spacing is not provided. Structural illustrations are not manufacturing drawings or electrical pinouts.
